Diamond Grinding for Levelling & Adhesive Removal

Diamond grinders are used generally for the grinding of flat horizontal dry surfaces that are typically concrete or asphalt with or without coatings. The diamond size or tungsten grit size can be varied to perform a wide range of jobs.

The more uneven the floor, the more you miss, or the more you have to grind to achieve an acceptable floor. An average grind for a double headed grinder would only be around 500 sq/metres per day.

We often diamond grind a floor to remove height irregularities and then shot-blast it afterwards to texture the areas missed by grinding. This obviously costs more but will improve the appearance of the finished coated floor.

A PCD (Polycrystal Diamond) grinding disc for the removal of stubborn glue and adhesive residues prior to standard diamond grinding.

A standard diamond grinding disc for the use on the majority of concrete floors and/or coatings and screeds.

Diamond grinding applications include:

Grinding of plain floors, whether rough, semi rough or smooth.
Levelling of uneven surfaces, joints etc.
Grinding of painted floors.
Removal of tile adhesive and carpet glue.

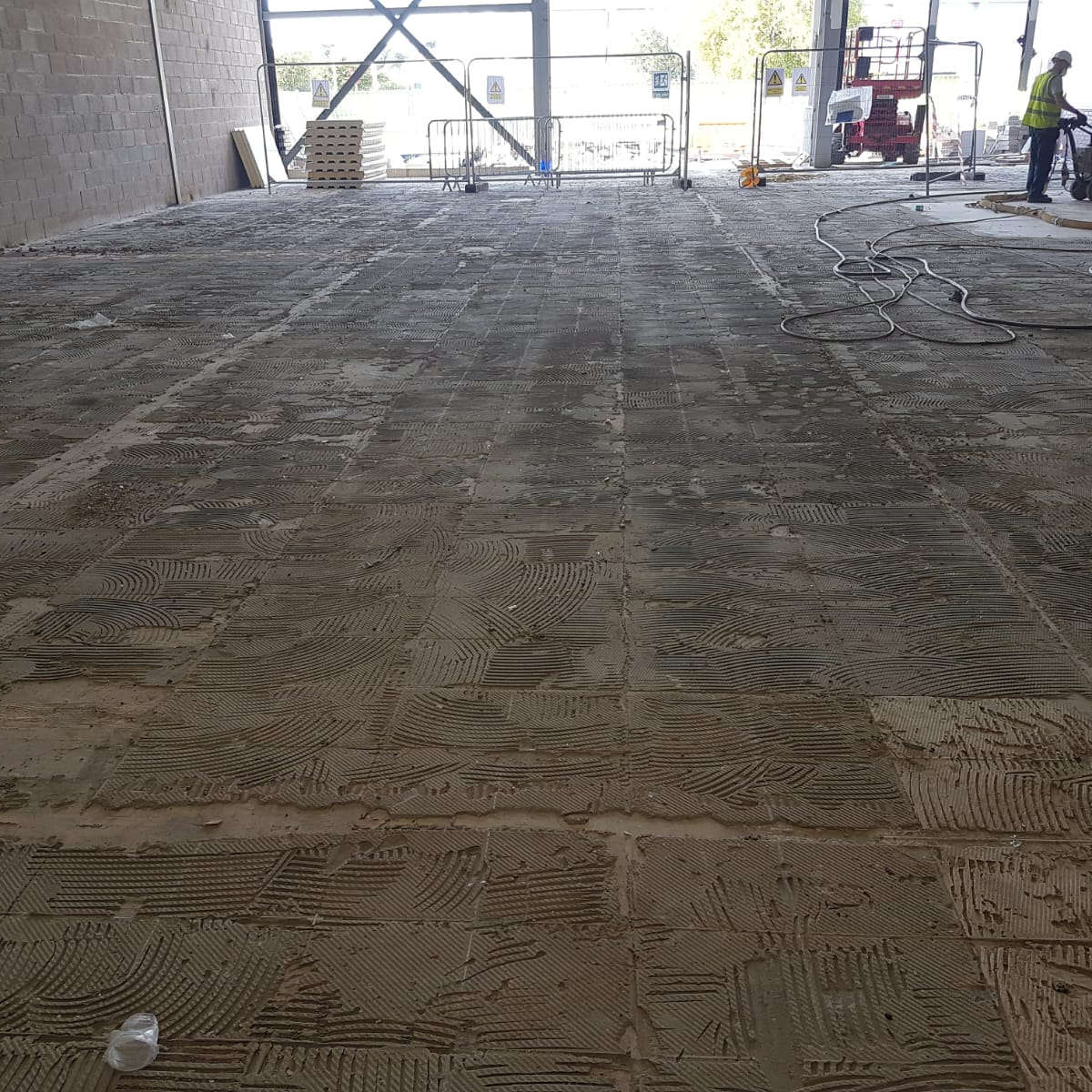

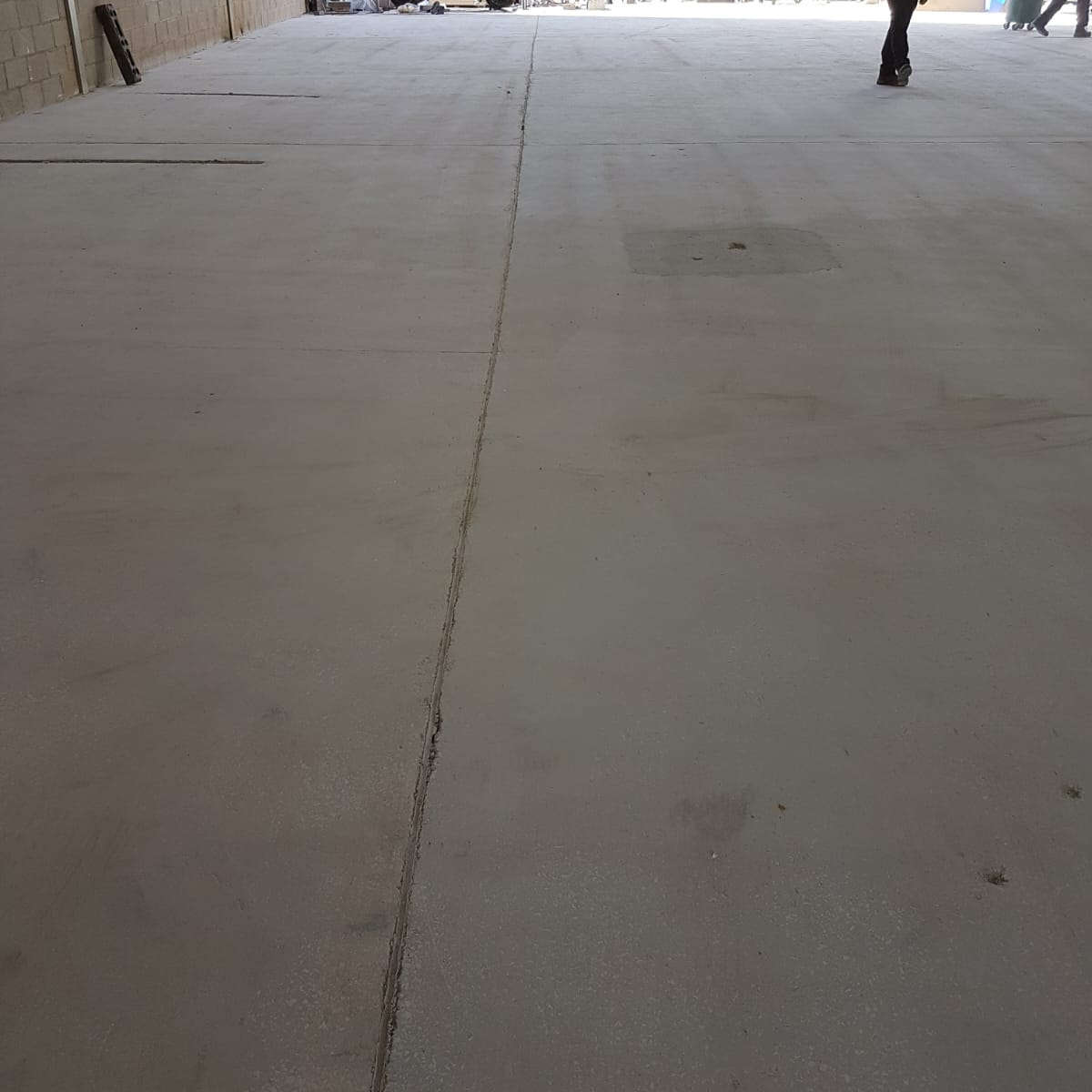

Diamond grinding ceramic tile adhesive.

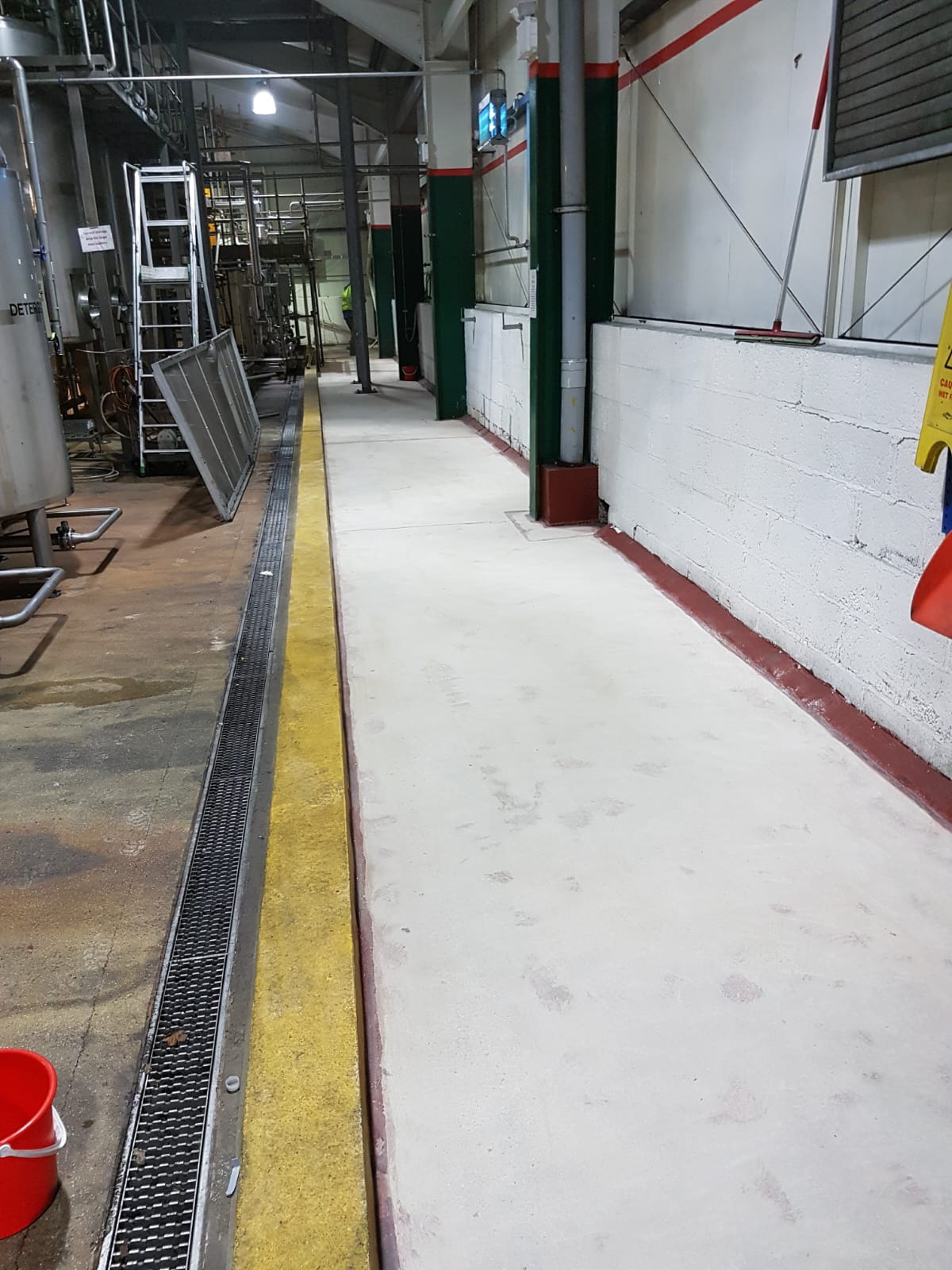

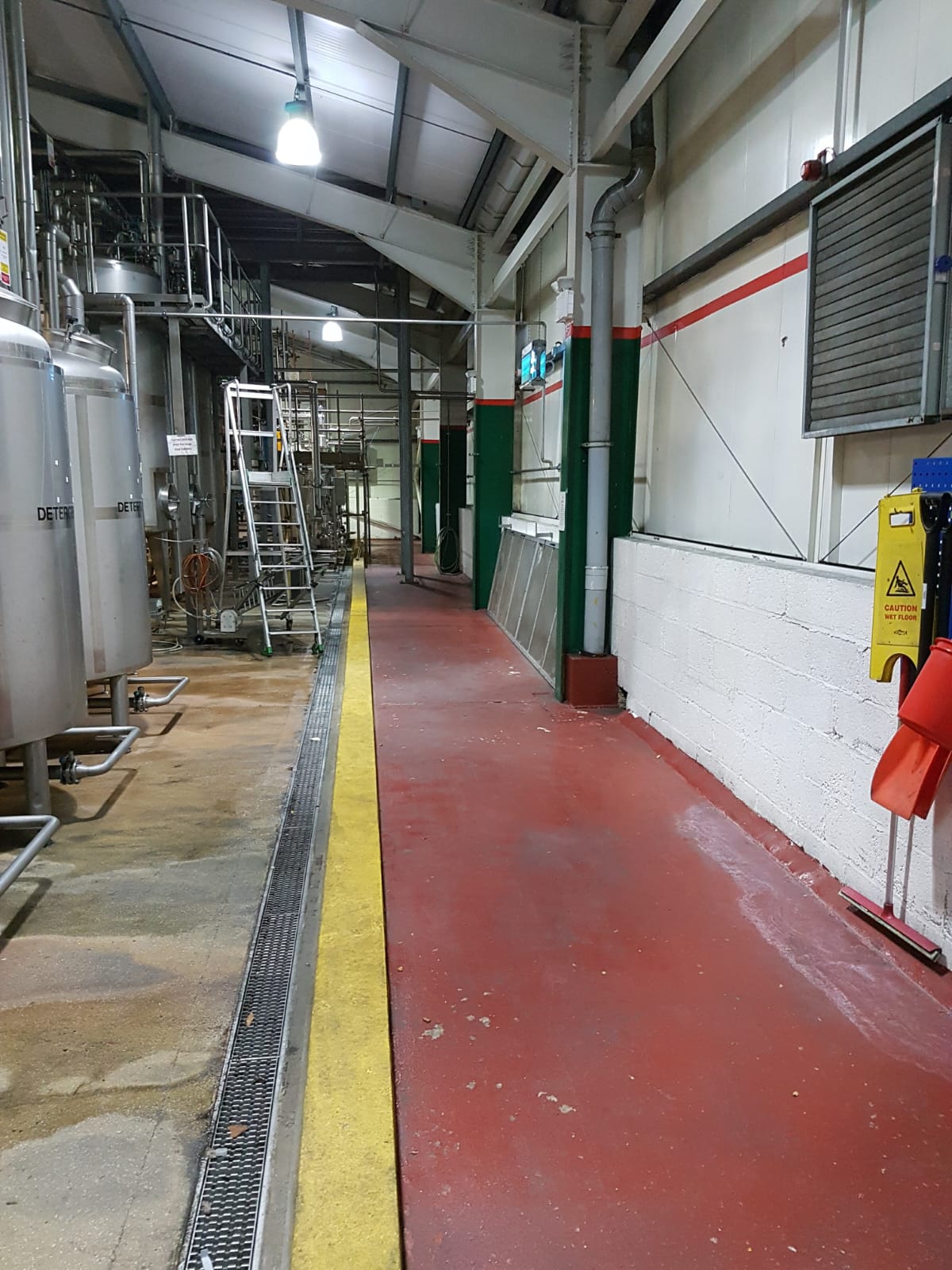

Before and after pictures

Please Contact Us for no-obligation advice and further information on all aspects of floor preparation.

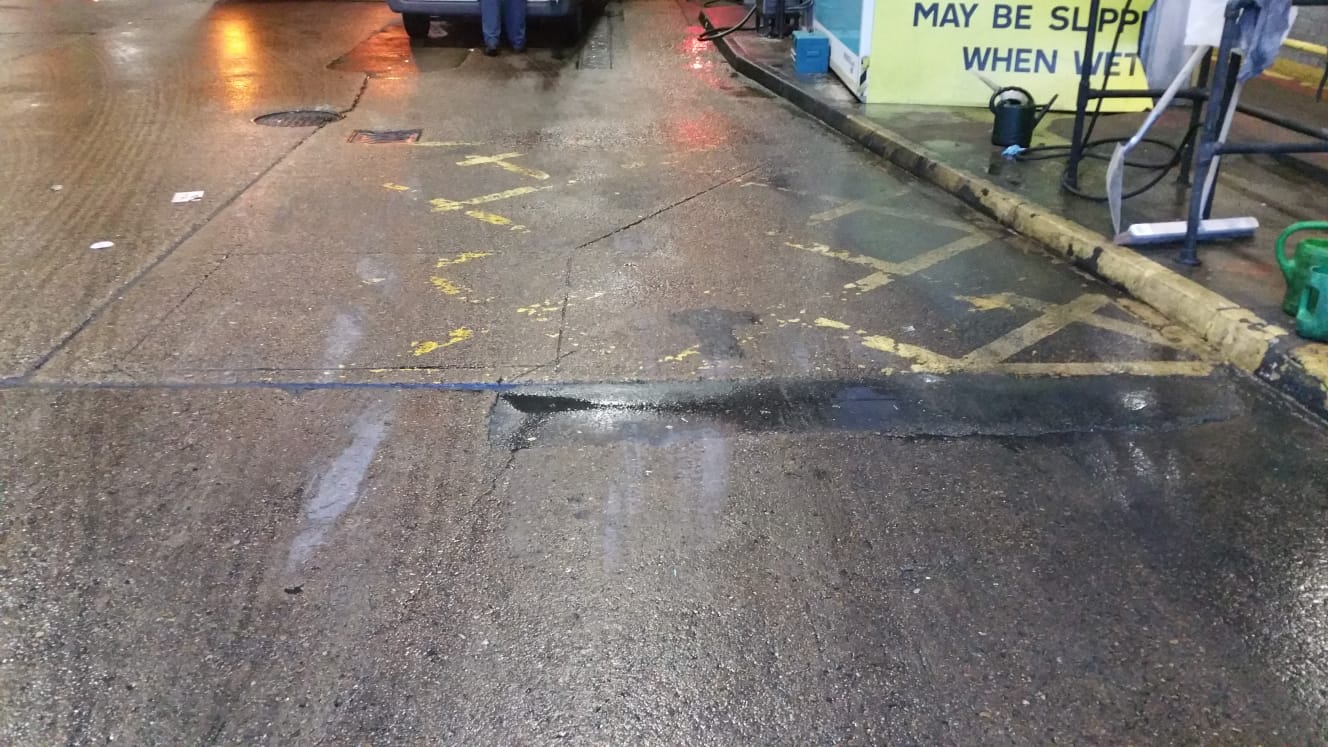

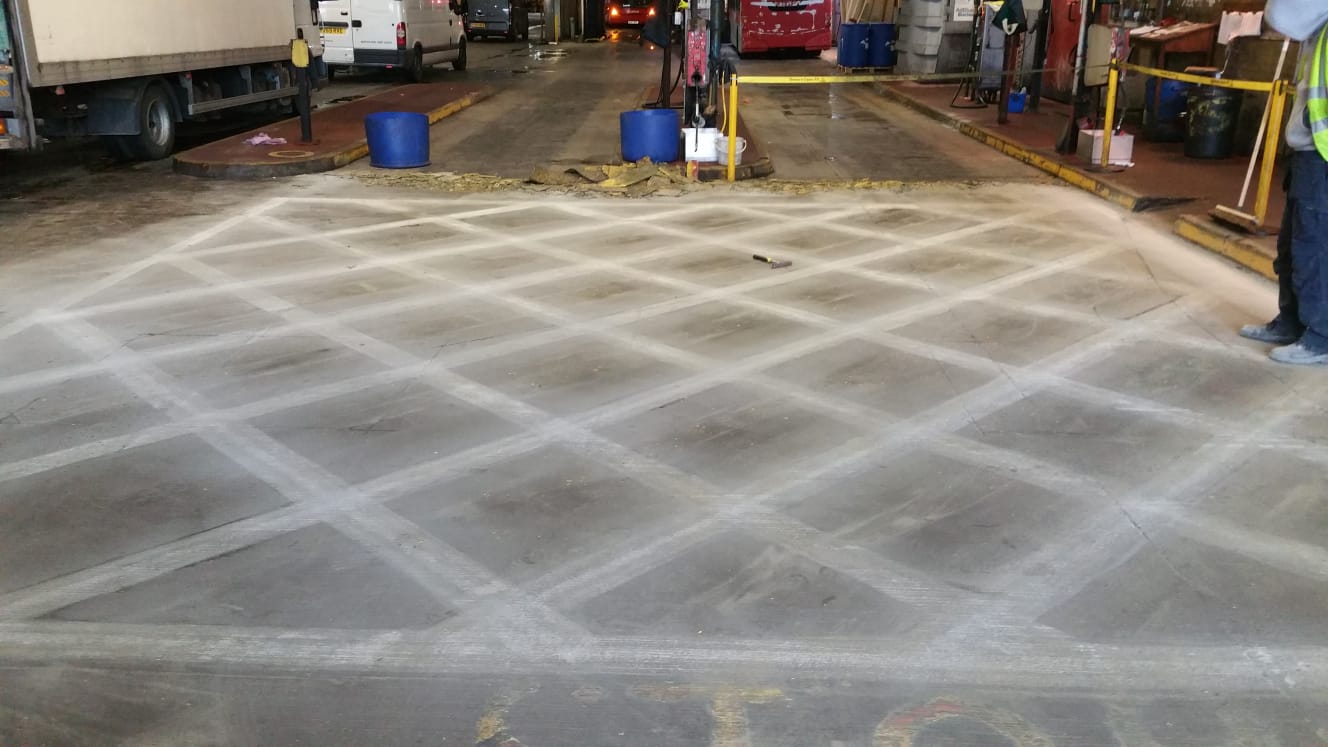

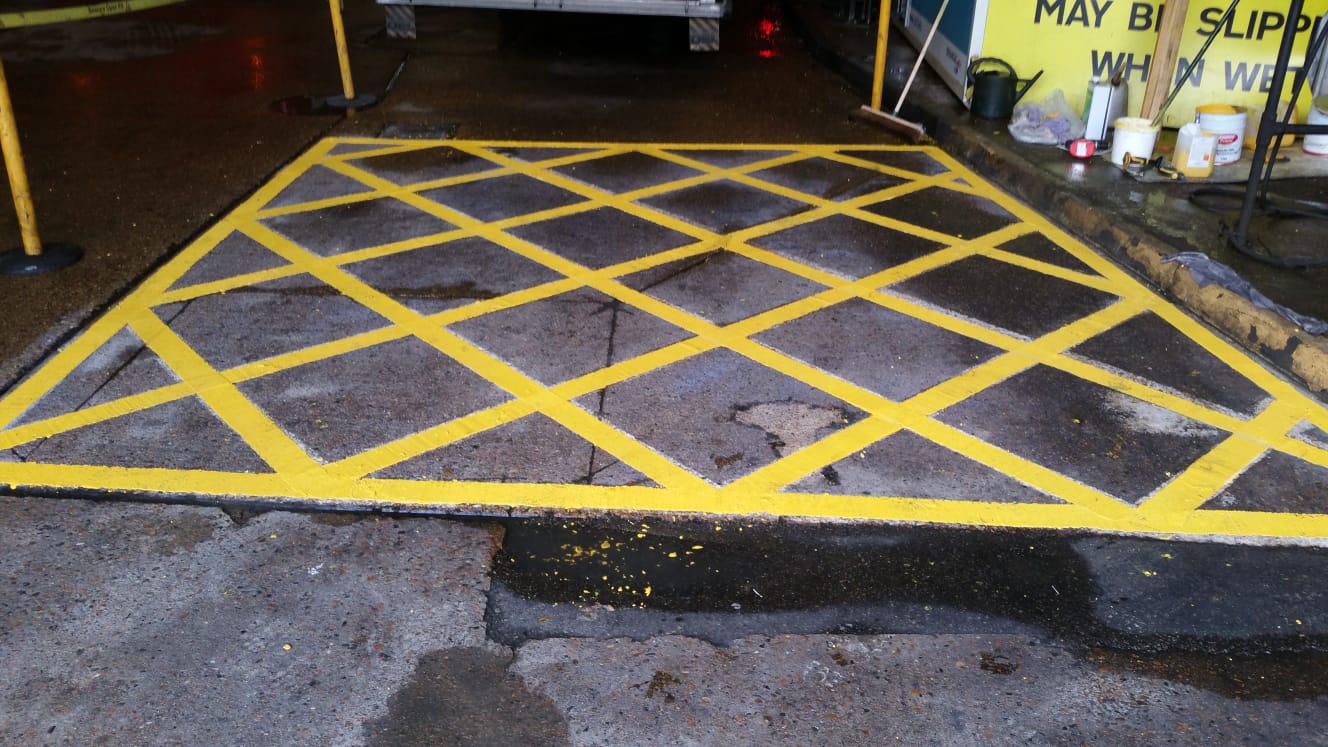

Safety line removal and prep for Transport for London.

SPE DFG 250

250mm (9.8″) working width single head design
Powerful 3Ø, gasolene/petrol and diesel options
Water can be applied to head for wet grinding
50mm dust extraction port
Adjustable rear axle allows for two weighted settings
Screw type hand wheel allows machine to be set accurately to the surface

Contec DELTA II Floor Grinder

The most advanced two speed grinders available. The wide range of grinding tools and operating options make the DELTA grinders extremely versatile.
They can grind most types of floors including concrete, terazzo and asphalt. The DELTA grinders are ideal for surface preparation prior to the application of epoxy and similar coatings.
They will effectively remove rubber deposits, adhesives, bituminous coatings and impacted dirt from factory floors.
The DELTA grinders are incredibly easy to operate and can be used with an industrial vacuum for a dust free working environment. Vibration and noise levels have been reduced to a minimum for the operator's safety and convenience.
